Glenair直插式插座連接器CB07D1L0,CB10K1NL0N0

發布時間：2024-11-01 10:20:27 瀏覽：437

　　Glenair直插式插座連接器為“內嵌連接器”，屬于CB系列“PogoPin”連接器，專為懸掛式電纜設計。其接觸件支持20 AWG電線，采用不可拆焊接杯觸點，電鍍硬金，具有耐腐蝕的特性。連接器外殼由不銹鋼制成，黑鉻拋光，正面使用硅膠面密封，開放面壓力額定為0.4 bar，耐用性達5000次循環。帶護罩的連接器更易于配對，并為連接后的接頭提供額外的保護。

型號參數：

7針直插式連接器

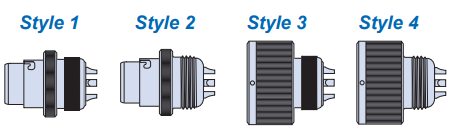

Body Style	No.of Contacts	Polarizing Position 1 (White)	Polarizing Position 2 (Yellow)	Polarizing Position 3 (Green)	Polarizing Position 4 (Pink)
Fig.1	7	CB07D1L0	CB07D2L0	CB07D3L0	CB07D4L0
Fig.2	7	CBO7DF1L0	CBO7DF2L0	CBO7DF3L0	CBO7DF4L0
Fig.3	7	CBO7KG1NL0N0	CBO7KG2NL0N0	CBO7KG3NL0N0	CBO7KG4NL0N0
Fig.4	7	CBO7K1NL0N0	CBO7K2NL0N0	CBO7K3NL0N0	CBO7K4NL0N0

10針直插式連接器

Body Style	No. of Pins	Polarizing Position 1 (White)	Polarizing Position 2 (Blue)	Polarizing Position 3 (Violet)	Polarizing Position 4 (Chrome Yellow)	Polarizing Position 5 (Dark Red)
Fig.A	10	CB10D1L0*	CB10D2L0	CB10D3L0	CB10D4L0	CB10D5L0
Fig.2	10	CB10DF1L0	CB10DF2L0	CB10DF3L0	CB10DF4L0	CB10DF5L0
Fig.3	10	CB10KG1NL0N0	CB10KG2NL0N0	CB10KG3NL0N0	CB10KG4NL0N0	CB10KG5NL0N0
Fig.4	10	CB10K1NL0N0	CB10K2NL0N0	CB10K3NL0N0	CB10K4NL0N0	CB10K5NL0N0
