MT15N152531-5R高壓電源模塊SDS HIGH VOLTAGE
發布時間:2025-03-24 09:11:44 瀏覽:379

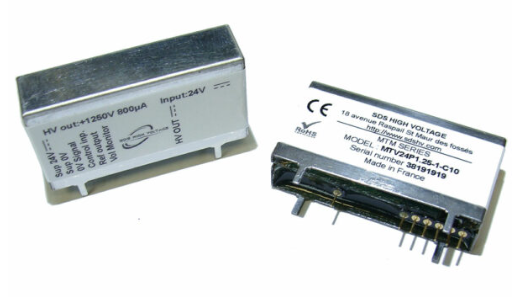

MTV系列是SDS HIGH VOLTAGE公司推出的超緊湊型、受控的高壓直流-直流轉換器,適用于需要0-1500V偏置電壓的設備,如光電倍增管等。
技術規格
輸入電壓:12Vdc、15Vdc或24Vdc,具體取決于型號。
輸出電壓:可選范圍0-600V、0-1kV、0-1.25kV或0-1.5kV,極性可為正或負。
功率等級:0.5W、0.8W或1W。
電壓調節:負載和線電壓調節精度均為±0.01%。
紋波:滿載時10mV到40mV峰-峰值。
高壓監測:輸出為±1V/kV,精度±2%。
尺寸:46.0mm×12.0mm×24.6mm。
重量:約35克。
選型指南
Obsolete reference | Current reference | Vout | lout/Pout | Vin | Control |
system | system | ||||
MT12N601831-5R | MTV12N0.6-0.5-C5 | 600V | 0.83mA/0.5W | 12V | 5V |
MT12N601831-10R | MTV12N0.6-0.5-C10 | 10V | |||
MT12N601831-5R-W | MTV12N0.6-0.5-C5-L | 5V | |||
MT12N601831-10R-W | MTV12N0.6-0.5-C10-L | 10V | |||
MT12P601831-5R | MTV12P0.6-0.5-C5 | 5V | |||
MT12P601831-10R | MTV12P0.6-0.5-C10 | 10V | |||
MT12P601831-5R-W | MTV12P0.6-0.5-C5-L | 5V | |||
MT12P601831-10R-W | MTV12P0.6-0.5-C10-L | 10V | |||
MT15N601132-5R | MTV15N0.6-0.8-C5 | 1.33mA/0.8W | 15V | 5V | |
MT15N601132-10R | MTV15NO.6-0.8-C10 | 10V | |||
MT15N601132-5R-W | MTV15N0.6-0.8-C5-L | 600V | 1.33mA/0.8W | 15V | 5V |
MT15N601132-C10W | MTV15N0.6-0.8-C10-L | 10V | |||
MT15P601132-5R | MTV15P0.6-0.8-C5 | 5V | |||
MT15P601132-10R | MTV15P0.6-0.8-C10 | 10V | |||
MT15P601132-5R-W | MTV15P0.6-0.8-C5-L | 5V | |||
MT15P601132-10R-W | MTV15P0.6-0.8-C10-L | 10V | |||
MT24N601167-5R | MTV24N0.6-1-C5 | 1.67mA/1.0w | 24V | 5V | |
MT24N601167-10R | MTV24N0.6-1-C10 | 10V | |||
MT24N601167-5R-W | MTV24NO.6-1-C5-L | 5V | |||
MT24N601167-10R-W | MTV24N0.6-1-C10-L | 10V | |||
MT24P601167-5R | MTV24P0.6-1-C5 | 5V | |||
MT24P601167-10R | MTV24P0.6-1-C10 | 10V | |||
MT24P601167-5R-W | MTV24P0.6-1-C5-L | 5V | |||
MT24P601167-10R-W | MTV24P0.6-1-C10-L | 10V | |||
MT12N102501-5R | MTV12N1-0.5-C5 | 1000V | 0.50mA/0.5W | 12V | 5V |
MT12N102501-10R | MTV12N1-0.5-C10 | 10V | |||
MT12N102501-5R-W | MTV12N1-0.5-C5-L | 5V | |||
MT12N102501-10R-W | MTV12N1-0.5-C10-L | 10V | |||
MT12P102501-5R | MTV12P1-0.5-C5 | 5V | |||
MT12P102501-10R | MTV12P1-0.5-C10 | 10V | |||
MT12P102501-5R-W | MTV12P1-0.5-C5-L | 5V | |||
MT12P102501-10R-W | MTV12P1-0.5-C10-L | 10V | |||
MT15N102801-5R | MTV15N1-0.8-C5 | 0.80mA/0.8W | 15V | 5V | |
MT15N102801-10R | MTV15N1-0.8-C10 | 10V | |||
MT15N102801-5R-W | MTV15N1-0.8-C5-L | 5V | |||
MT15N102801-10R-W | MTV15N1-0.8-C10-L | 10V | |||
MT15P102801-5R | MTV15P1-0.8-C5 | 5V | |||
MT15P102801-10R | MTV15P1-0.8-C10 | 10V | |||
MT15P102801-5R-W | MTV15P1-0.8-C5-L | 5V | |||
MT15P102801-10R-W | MTV15P1-0.8-C10-L | 10V | |||
MT24N102102-5R | MTV24N1-1-C5 | 1.00mA/1.0W | 24V | 5V | |
MT24N102102-10R | MTV24N1-1-C10 | 10V | |||
MT24N102102-5R-W | MTV24N1-1-C5-L | 5V | |||
MT24N102102-10R-W | MTV24N1-1-C10-L | 10V | |||
MT24P102102-5R | MTV24P1-1-C5 | 5V | |||
MT24P102102-10R | MTV24P1-1-C10 | 10V | |||
MT24P102102-5R-W | MTV24P1-1-C5-L | 5V | |||
MT24P102102-10R-W | MTV24P1-1-C10-L | 10V | |||
MT12N122401-5R | 1250V | 0.4mA/0.5W | 12V | 5V | |
MT12N122401-10R | MTV12N1.25-0.5-C10 | 10V | |||
MT12N122401-5R-W | MTV12N1.25-0.5-C5-L | 5V | |||
MT12N122401-10R-W | MTV12N1.25-0.5-C10-L | 1250V | 0.4mA/0.5W | 12V | 10V |
MT12P122401-5R | MTV12P1.25-0.5-C5 | 5V | |||
MT12P122401-10R | MTV12P1.25-0.5-C10 | 10V | |||
MT12P122401-5R-W | MTV12P1.25-0.5-C5-L | 5V | |||
MT12P122401-10R-W | MTV12P1.25-0.5-c10 | 10V | |||
MT15N122641-5R | MTV15N1.25-0.8-C5 | 0.64mA/0.8W | 15V | 5V | |
MT15N122641-10R | MTV15N1.25-0.8-C10 | 10V | |||
MT15N122641-5R-W | MTV15N1.25-0.8-C5-L | 5V | |||
MT15N122641-10R-W | MTV15N1.25-0.8-C10-L | 10V | |||
MT15P122641-5R | MTV15P1.25-0.8-C5 | 5V | |||
MT15P122641-10R | MTV15P1.25-0.8-C10 | 10V | |||
MT15P122641-5R-W | MTV15P1.25-0.8-C5-L | 5V | |||
MT15P122641-10R-W | MTV15P1.25-0.8-C10-L | 10V | |||
MT24N122801-5R | MTV24N1.25-1-C5 | 0.80mA/1.0W | 24V | 5V | |
MT24N122801-10R | MTV24N1.25-1-C10 | 10V | |||
MT24N122801-5R-W | MTV24N1.25-1-C5-L | 5V | |||
MT24N122801-10R-W | MTV24N1.25-1-C10-L | 10V | |||
MT24P122801-5R | MTV24P1.25-1-C5 | 5V | |||
MT24P122801-10R | MTV24P1.25-1-C10 | 10V | |||
MT24P122801-5R-W | MTV24P1.25-1-C5-L | 5V | |||
MT24P122801-10R-W | MTV24P1.25-1-C10-L | 10V | |||
MT12N152331-5R | MTV12N1.5-0.5-C5 | 0.33mA/0.5W | 12V | 5V | |
MT12N152331-10R | MTV12N1.5-0.5-C10 | 10V | |||
MT12N152331-5R-W | MTV12N1.5-0.5-C5-L | 5V | |||
MT12N152331-10R-W | MTV12N1.5-0.5-C10-L | 10V | |||
MT12P152331-5R | MTV12P1.5-0.5-C5 | 5V | |||
MT12P152331-10R | MTV12P1.5-0.5-C10 | 10V | |||
MT12P152331-5R-W | MTV12P1.5-0.5-C5-L | 5V | |||
MT12P152331-10R-W | MTV12P1.5-0.5-C10-L | 1500V | 10V | ||
MT15N152531-5R | MTV15N1.5-0.8-C5 | 5V | |||
MT15N152531-10R | MTV15N1.5-0.8-C10 | 0.53mA/0.8W | 15V | 5V | |
MT15N152531-5R-W | MTV15N1.5-0.8-C5-L | 10V | |||
MT15N152531-10R-W | MTV15N1.5-0.8-C10-L | 5V | |||
MT15P152531-C5 | MTV15P1.5-0.8-C5 | 10V | |||
MT24P152671-5R | MTV24P1.5-1-C5 | 1500V | 0.97mA/1.0W | 24V | 5V |
MT24P152671-10R | MTV24P1.5-1-C10 | 10V | |||
MT24P152671-5R-W | MTV24P1.5-1-C5-L | 5V | |||
MT24P152671-10R-W | MTV24P1.5-1-C10-L | 10V |
推薦資訊
高壓電源模塊是將低壓轉換為高壓的關鍵電子組件,廣泛應用于醫療、工業和科研領域。主流品牌中,Gamma系列以寬電壓范圍(100V-500kV)和大功率(1W-6kW)著稱,適合高精度醫療設備;APD系列具備卓越隔離性能和寬溫工作能力(-40℃至85℃),適用于工業惡劣環境;SDS系列則以超緊湊設計、低紋波和高效率(>85%)見長,適合便攜設備。選型需綜合電壓(超高壓選Gamma、中高壓選APD/SDS)、功率(微功率選SDS、大功率選Gamma)、環境適應性(寬溫選APD300)及尺寸(超緊湊選SDS Nano)等要素,典型場景如醫療CT推薦Gamma,工業檢測推薦APD,便攜儀器推薦SDS。

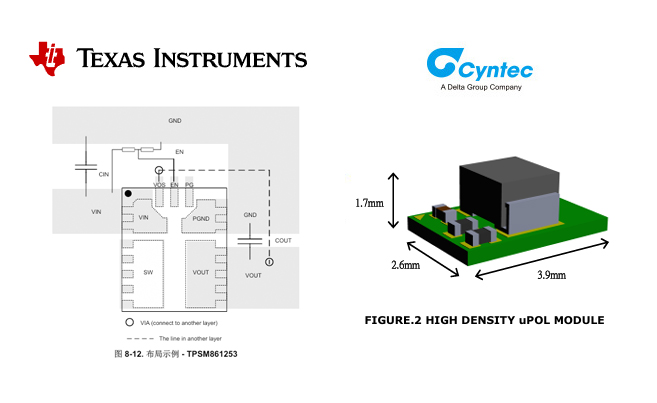

Cyntec的MUN123C01-SGB是一款高效、緊湊的非隔離型DC-DC轉換器,具備高集成度和1A輸出電流,輸入電壓范圍為4.5V至16V,固定輸出電壓為3.3V,封裝尺寸僅為3.9mm × 2.6mm × 1.7mm,適用于空間受限的應用。其內部集成了PWM開關穩壓器、高頻功率電感和大部分元件,簡化了設計布局,并具備內部軟啟動、非閉鎖過流保護和輸入欠壓鎖定功能,是TI TPSM861253降壓電源模塊的理想替代方案,尤其適合便攜式設備和緊湊型電子產品。
