RFCI通信頻段N連接器螺紋隔離器20W
發布時間：2025-04-18 14:17:10 瀏覽：1910

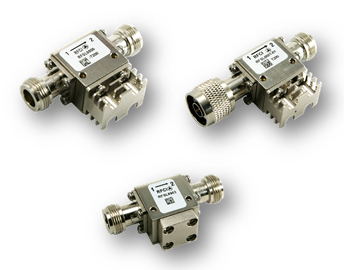

RF Circulator Isolator, Inc.推出的 N 連接器線程隔離器是一款專為通信頻段設計的射頻隔離器，具有以下特點：
應用場景：主要用于通信系統、無線基礎設施和雷達頻段。
連接器類型：標準型號配備 N 型母頭連接器，支持順時針(CW)旋轉，也可定制逆時針(CCW)旋轉。
功率等級：提供 20W、100W 和 200W 三種標準功率選項。
關鍵特性：
帶安裝孔，可方便固定。
插入損耗低，隔離度高。
寬溫度范圍和高功率處理能力。
結構堅固，符合 RoHS 標準，帶有磁屏蔽。
型號參數信息：
| Part Number | FrequeNIy Range | Insertion Loss | Isolation | Return Loss | Forward Power | Rev Power | Operating Temperature | Package Outline |
| (dB) | (dB) | (dB) | CW (W) | CW (W) |
| Low | High | Room/OT | Room/OT | Room/OT |
|
| (°C) | Figure |
| RFSL6124 | 205 | 230 | 0.50/0.70 | 20/18 | 20/18 | 2.0k/250 | 20 | -20 to +85°C | NI-01 |
| RFSL6125 | 220 | 280 | 0.50/0.70 | 19/17 | 19/17 | 2.0k/250 | 20 | -20 to +85°C | NI-01 |
| RFSL6126 | 270 | 335 | 0.40/0.60 | 20/18 | 20/18 | 2.0k/250 | 20 | -20 to +85°C | NI-01 |
| RFSL6101 | 270 | 330 | 0.40/0.50 | 20/18 | 20/18 | 2.0k/250 | 20 | -20 to +85°C | NI-03 |
| RFSL6127 | 325 | 400 | 0.40/0.50 | 21/18 | 21/18 | 2.0k/250 | 20 | -20 to +85°C | NI-03 |
| RFSL6102 | 328 | 406 | 0.40/0.50 | 20/18 | 20/18 | 2.0k/250 | 20 | -20 to +85°C | NI-03 |
| RFSL6128 | 350 | 410 | 0.40/0.50 | 22/20 | 22/20 | 2.0k/250 | 20 | -20 to +85°C | NI-03 |
| RFSL6103 | 380 | 470 | 0.40/0.50 | 21/19 | 21/19 | 2.0k/250 | 20 | -20 to +85°C | NI-03 |
| RFSL6104 | 400 | 500 | 0.40/0.50 | 21/18 | 21/18 | 2.0k/250 | 20 | -20 to +85°C | NI-03 |
| RFSL6106 | 512 | 698 | 0.50/0.60 | 19/17 | 19/17 | 2.0k/250 | 20 | -20 to +85°C | NI-03 |
| RFSL6107 | 600 | 800 | 0.50/0.60 | 19/17 | 19/17 | 2.0k/250 | 20 | -20 to +85°C | NI-03 |
| RFSL6108 | 330 | 360 | 0.40/0.50 | 22/20 | 22/20 | 2.0k/250 | 20 | -20 to +85°C | NI-05 |
| RFSL6109 | 350 | 380 | 0.30/0.40 | 22/20 | 22/20 | 2.0k/250 | 20 | -20 to +85°C | NI-05 |
| RFSL6110 | 360 | 390 | 0.30/0.40 | 22/20 | 22/20 | 2.0k/250 | 20 | -20 to +85°C | NI-05 |
| RFSL6111 | 380 | 430 | 0.30/0.40 | 22/20 | 22/20 | 2.0k/250 | 20 | -20 to +85°C | NI-05 |
| RFSL6129 | 400 | 470 | 0.40/0.50 | 21/18 | 21/18 | 2.0k/250 | 20 | -20 to +85°C | NI-05 |
| RFSL6112 | 400 | 450 | 0.30/0.40 | 22/20 | 22/20 | 2.0k/250 | 20 | -20 to +85°C | NI-05 |
| RFSL6113 | 415 | 455 | 0.30/0.40 | 22/20 | 22/20 | 2.0k/250 | 20 | -20 to +85°C | NI-05 |
| RFSL6114 | 450 | 500 | 0.30/0.40 | 22/20 | 22/20 | 2.0k/250 | 20 | -20 to +85°C | NI-03 |
| RFSL6130 | 470 | 570 | 0.40/0.50 | 20/18 | 20/18 | 2.0k/250 | 20 | -20 to +85°C | NI-05 |
| RFSL6115 | 470 | 520 | 0.30/0.40 | 22/20 | 22/20 | 2.0k/250 | 20 | -20 to +85°C | NI-05 |
| RFSL6116 | 520 | 576 | 0.30/0.40 | 22/20 | 22/20 | 2.0k/250 | 20 | -20 to +85°C | NI-05 |
| RFSL6131 | 570 | 670 | 0.40/0.50 | 20/18 | 20/18 | 2.0k/250 | 20 | -20 to +85°C | NI-05 |
| RFSL6117 | 576 | 638 | 0.30/0.40 | 22/20 | 22/20 | 2.0k/250 | 20 | -20 to +85°C | NI-05 |
| RFSL6118 | 600 | 750 | 0.40/0.50 | 21/19 | 21/19 | 2.0k/250 | 20 | -20 to +85°C | NI-05 |
| RFSL6119 | 700 | 1000 | 0.50/0.60 | 17/16.5 | 17/16.5 | 2.0k/250 | 20 | -20 to +85°C | NI-05 |
| RFSL6132 | 770 | 870 | 0.40/0.50 | 22/20 | 22/20 | 2.0k/250 | 20 | -20 to +85°C | NI-05 |
| RFSL6202 | 800 | 1000 | 0.40/0.50 | 19/18 | 19/18 | 2.0k/250 | 20 | -20 to +85°C | NI-05 |
| RFSL6203 | 800 | 960 | 0.40/0.50 | 22/20 | 22/20 | 2.0k/250 | 20 | -20 to +85°C | NI-05 |
| RFSL6309 | 950 | 1250 | 0.60/0.70 | 17/16.5 | 17/16.5 | 2.0k/250 | 20 | -20 to +85°C | NI-05 |
| RFSL6310 | 960 | 1260 | 0.60/0.70 | 17/16.5 | 17/16.5 | 2.0k/250 | 20 | -20 to +85°C | NI-05 |
| RFSL6120 | 638 | 704 | 0.30/0.40 | 22/20 | 22/20 | 2.0k/250 | 20 | -20 to +85°C | NI-07 |
| RFSL6121 | 698 | 806 | 0.30/0.40 | 22/20 | 22/20 | 2.0k/250 | 20 | -20 to +85°C | NI-07 |
| RFSL6122 | 700 | 830 | 0.40/0.50 | 22/20 | 22/20 | 2.0k/250 | 20 | -20 to +85°C | NI-07 |
| RFSL6308 | 940 | 1200 | 0.40/0.50 | 20/18 | 20/18 | 2.0k/250 | 20 | -20 to +85°C | NI-07 |
| RFSL6301 | 1000 | 1400 | 0.50/0.60 | 19/17 | 19/17 | 2.0k/250 | 20 | -20 to +85°C | NI-07 |
| RFSL6406 | 1300 | 1700 | 0.50/0.60 | 19/17 | 19/17 | 2.0k/250 | 20 | -20 to +85°C | NI-07 |
| RFSL6123 | 700 | 850 | 0.40/0.50 | 22/20 | 22/20 | 2.0k/200 | 20 | -40 to +85°C | NI-09 |
| RFSL6201 | 790 | 960 | 0.40/0.50 | 22/20 | 22/20 | 2.0k/200 | 20 | -40 to +85°C | NI-09 |
| RFSL6302 | 850 | 1030 | 0.40/0.50 | 22/20 | 22/20 | 2.0k/200 | 20 | -40 to +85°C | NI-09 |
| RFSL6303 | 900 | 1100 | 0.40/0.50 | 22/20 | 22/20 | 2.0k/250 | 20 | -40 to +85°C | NI-09 |
| RFSL6304 | 960 | 1215 | 0.40/0.50 | 22/20 | 22/20 | 2.0k/250 | 20 | -40 to +85°C | NI-09 |
| RFSL6305 | 1000 | 1220 | 0.40/0.50 | 22/20 | 22/20 | 2.0k/200 | 20 | -40 to +85°C | NI-09 |
| RFSL6306 | 1100 | 1300 | 0.40/0.50 | 22/20 | 22/20 | 2.0k/200 | 20 | -40 to +85°C | NI-09 |
| RFSL6307 | 1200 | 1450 | 0.40/0.50 | 22/20 | 22/20 | 2.0k/200 | 20 | -40 to +85°C | NI-09 |
| RFSL6405 | 1300 | 1700 | 0.50/0.60 | 19/17 | 19/17 | 2.0k/200 | 20 | -40 to +85°C | NI-09 |
| RFSL6401 | 1350 | 1850 | 0.50/0.60 | 18/17 | 18/17 | 2.0k/200 | 20 | -40 to +85°C | NI-09 |
| RFSL6402 | 1400 | 1700 | 0.40/0.50 | 21/19 | 21/19 | 2.0k/200 | 20 | -40 to +85°C | NI-09 |
| RFSL6407 | 1600 | 2000 | 0.40/0.50 | 20/18 | 20/18 | 2.0k/200 | 20 | -40 to +85°C | NI-09 |
| RFSL6403 | 1400 | 1600 | 0.30/0.40 | 23/20 | 23/20 | 2.0k/200 | 20 | -40 to +85°C | NI-11 |
| RFSL6404 | 1500 | 1800 | 0.30/0.40 | 23/20 | 23/20 | 2.0k/200 | 20 | -40 to +85°C | NI-11 |
| RFSL6502 | 1600 | 2000 | 0.40/0.50 | 20/18 | 20/18 | 2.0k/200 | 20 | -40 to +85°C | NI-11 |
| RFSL6601 | 1700 | 2100 | 0.30/0.40 | 23/20 | 23/20 | 2.0k/20 | 20 | -40 to +85°C | NI-11 |
| RFSL6603 | 1765 | 2250 | 0.40/0.50 | 21/19 | 21/19 | 2.0k/200 | 20 | -40 to +85°C | NI-11 |
| RFSL6501 | 1800 | 2200 | 0.40/0.50 | 21/19 | 21/19 | 2.0k/200 | 20 | -40 to +85°C | NI-11 |
| RFSL6604 | 1980 | 2520 | 0.40/0.50 | 21/19 | 21/19 | 2.0k/200 | 20 | -40 to +85°C | NI-11 |
| RFSL6702 | 2000 | 2400 | 0.35/0.50 | 22/19 | 22/19 | 2.0k/200 | 20 | -40 to +85°C | NI-11 |
| RFSL6701 | 2000 | 2300 | 0.30/0.40 | 23/20 | 23/20 | 2.0k/200 | 20 | -40 to +85°C | NI-11 |
| RFSL6801 | 2100 | 2600 | 0.30/0.40 | 23/20 | 23/20 | 2.0k/200 | 20 | -40 to +85°C | NI-11 |
| RFSL6802 | 2300 | 2700 | 0.30/0.40 | 23/20 | 23/20 | 2.0k/200 | 20 | -40 to +85°C | NI-11 |
| RFSL6811 | 2400 | 3000 | 0.30/0.40 | 23/20 | 23/20 | 2.0k/200 | 20 | -40 to +85°C | NI-11 |
| RFSL6803 | 2500 | 2900 | 0.30/0.40 | 23/20 | 23/20 | 2.0k/200 | 20 | -40 to +85°C | NI-11 |
| RFSL6810 | 2700 | 3300 | 0.40/0.50 | 21/19 | 21/19 | 2.0k/100 | 20 | -40 to +85°C | NI-11 |
| RFSL6804 | 2700 | 3100 | 0.30/0.40 | 23/20 | 23/20 | 2.0k/100 | 20 | -40 to +85°C | NI-11 |
| RFSL6805 | 2800 | 3300 | 0.30/0.40 | 23/20 | 23/20 | 2.0k/100 | 20 | -40 to +85°C | NI-11 |
| RFSL6806 | 2900 | 3500 | 0.30/0.40 | 23/20 | 23/20 | 2.0k/100 | 20 | -40 to +85°C | NI-11 |
| RFSL6812 | 3300 | 3800 | 0.40/0.50 | 21/19 | 21/19 | 2.0k/100 | 20 | -40 to +85°C | NI-11 |
| RFSL6807 | 3300 | 3800 | 0.30/0.40 | 23/20 | 23/20 | 500/50 | 20 | -20 to +85°C | NI-11 |
| RFSL6808 | 3400 | 4200 | 0.30/0.40 | 23/20 | 23/20 | 500/50 | 20 | -20 to +85°C | NI-11 |
| RFSL6809 | 3600 | 4300 | 0.30/0.40 | 23/20 | 23/20 | 500/50 | 20 | -20 to +85°C | NI-11 |
| RFSL6901 | 3900 | 4700 | 0.30/0.40 | 23/20 | 23/20 | 500/50 | 20 | -20 to +85°C | NI-11 |
| RFSL6902 | 4200 | 5200 | 0.30/0.40 | 23/20 | 23/20 | 500/50 | 20 | -20 to +85°C | NI-11 |
| RFSL6903 | 5000 | 6000 | 0.30/0.40 | 23/20 | 23/20 | 500/50 | 20 | -20 to +85°C | NI-11 |
| RFSL6904 | 5700 | 6800 | 0.30/0.40 | 23/20 | 23/20 | 500/50 | 20 | -20 to +85°C | NI-11 |
| RFSL6905 | 6000 | 8000 | 0.30/0.40 | 23/20 | 23/20 | 500/50 | 20 | -20 to +85°C | NI-11 |
RFCI是一家專業生產射頻(RF)環行器和隔離器的公司，產品覆蓋了從50 MHz到20 GHz的頻率范圍，廣泛應用于通信和無線基礎設施。深圳市立維創展科技有限公司優勢代理銷售RFCI產品，歡迎咨詢了解。
