Rogers羅杰斯RO3203、RO3206、RO3210材料規格
發布時間：2025-12-29 09:22:01 瀏覽：129

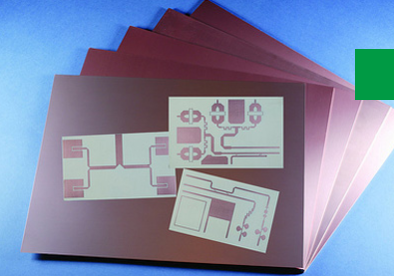

Rogers羅杰斯RO3203、RO3206和RO3210高頻PCB電路材料采用陶瓷填料層壓，并由玻璃編織布加固。這些材料的開發是為了以具有競爭力的價格提供卓越的電氣和機械穩定性。
Rogers RO3200系列材料作為RO3000系列高頻材料的延伸，有一個非常顯著的特點，那就是更好的機械穩定性。
| Property | Typical Value(1) | Direction | Unit | Condition | Test Method |
| RO3203 | RO3206 | RO3210 |
| Dielectric Constant,εrProcess | 3.02± 0.04 | 6.15± 0.15 | 10.2± 0.50 | Z | – | 10 GHz 23°C | IPC-TM-650 2.5.5.5 Clamped stripline |
| (2)Dielectric Constant,εrDesign | 3.02 | 6.6 | 10.8 | Z | – | 8 GHz – 40 GHz | Differential Phase Length Method |
| Dissipation Factor,tan δ | 0.0016 | 0.0027 | 0.0027 | Z | – | 1.0 GHz 23°C | IPC-TM-650 2.5.5.5 |
| Thermal Coefficient of εr | –13 | –212 | –459 | Z | ppm/°C | 10 GHz 0–100°C | IPC-TM-650 2.5.5.5 |
| Dimensional Stability | 0.8 | 0.8 | 0.8 | X,Y | mm/m | COND A | ASTM D257 |
| Volume Resistivity | 107 | 103 | 103 |
| MΩ?cm | COND A | IPC 2.5.17.1 |
| Surface Resistivity | 107 | 103 | 103 |
| MΩ | COND A | IPC 2.5.17.1 |
| Tensile Modulus | 409 351 | 462 462 | 579 517 | MD CMD | kpsi | 23°C | ASTM D638 |
| Water Absorption | <0.1 | <0.1 | <0.1 | – | % | D24/23 | IPC-TM-650 2.6.2.1 |
| Specific Heat | 0.95 | 0.85 | 0.79 |
| J/g/K |
| Calculated |
| Thermal Conductivity | 0.48 | 0.67 | 0.81 | – | W/m/K | 80°C | ASTM C518 |
| Coefficient of Thermal Expansion | 13 58 | 13 34 | 13 34 | X,Y,Z | ppm/°C | –55 to 288°C | ASTM D3386–94 |
| Td | 500 | 500 | 500 |
| °C | TGA | ASTM D3850 |
| Color | Tan | Tan | Off White |
|
|
|
|
| Density | 2.1 | 2.7 | 3 |
| gm/cm3 |
|
|
| Copper Peel Strength | 10.2 | 10.7 | 11 |
| pli | 1 oz. EDC After Solder Float | IPC-TM-2.4.8 |
| Flammability | V–0 | V–0 | V–0 |
|
|
| UL 94 |
| Lead Free Process Compatible | YES | YES | YES |
|
|
|
|
Rogers羅杰斯RO3203PTFE玻璃布的介電常數為3.02。Rogers
RO3203的介電損耗為0.0016，將可用頻率范圍擴展到40GHz。Rogers
RO3206PTFE陶瓷玻璃布的介電常數為6.15，而RO3210PTFE陶瓷玻璃布的介電常數為10.2。羅杰斯RO3206和Rogers
RO3210聚四氟乙烯玻璃布的介電損耗為0.0027。
| Standard Thickness | Standard Panel Size | Standard Copper Cladding |
RO3203:
0.010” (0.25mm)
0.020” (0.50mm)
0.030” (0.75mm)
0.060” (1.52mm) | 12" X 18" (305 X 457mm)
24" X 18" (610 X 457mm) | ? oz. (17μm) electrodeposited copper foil (HH/HH) & rolled copper foil (5R/5R)
1 oz. (35μm) electrodeposited copper foil. (H1/H1) & rolled copper foil (1R/1R)
2 oz. (70μm) electrodeposited copper foil. (H2/H2) & rolled copper foil (2R/2R) |
|
|
|
|
RO3206/RO3210:
0.025” (0.64mm)
0.050” (1.28mm) | 12" X 18" (305 X 457mm)
24" X 18" (610 X 457mm) | ? oz. (17μm) electrodeposited copper foil (HH/HH)
1 oz. (35μm) electrodeposited copper foil. (H1/H1)
2 oz. (70μm) electrodeposited copper foil. (H2/H2) & rolled copper foil (2R/2R) Other claddings may be available. Contact customer service. |
|
|
Rogers羅杰斯RO3203、RO3206和RO3210高頻PCB電路材料的優點如下：
高頻性能將頻率范圍擴展到20GHz以上(RO3203層壓板)，適用于環氧樹脂多層板的混合壓機設計，光滑的材料表面使蝕刻線更加準確。
Rogers羅杰斯RO3203、RO3206和RO3210高頻PCB電路材料的應用：
汽車防撞系統PCB，汽車全球定位衛星天線PCB，無線通信系統PCB，無線通信PCB中的微帶貼片天線
ive衛星天線PCB，有線系統中的數據連接PCB，遠程抄表設備PCB，電源背板PCB，LMDS和無線廣播PCB，基站基礎設施PCB。
