- 產品詳情
PDI在廣泛的標準頻率范圍內提供各種表面貼裝濾波器(10,000 MHz至90.000 MHz)，并且具有任何商業或軍用級規格的最高質量。PDI的晶體濾波器有多種表面貼裝封裝，可滿足客戶所需的規格。

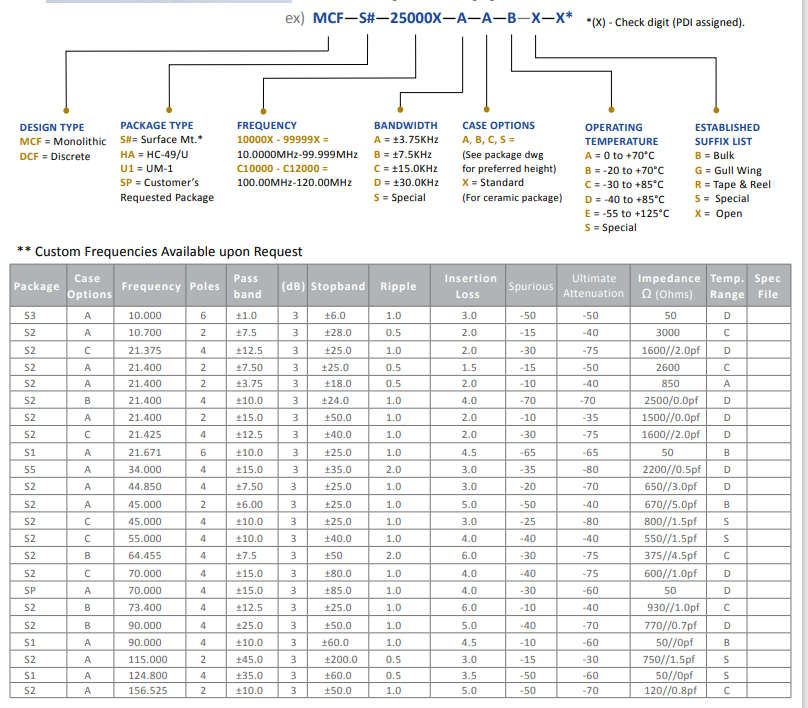

選型：
| 封裝 | 頻率范圍 | Thru-Hole/SMD | Discrete/Monolithic | 工作溫度 | Poles | Lead Free |
|---|---|---|---|---|---|---|
| S1 | 10.7MHz to 200MHz | SMD | Monolithic | -55 to +125°C | 4 | Yes |
| S2 | 10.7MHz to 200MHz | SMD | Monolithic | -55 to +125°C | 4 | Yes |
| S3 | 10.7MHz to 200MHz | SMD | Monolithic | -55 to +125°C | 6 | Yes |
| S4 | 10.7MHz to 200MHz | SMD | Monolithic | -55 to +125°C | 6 | Yes |
| S5 | 10.7MHz to 200MHz | SMD | Monolithic | -55 to +125°C | 8 | |
| SC | 10.7MHz to 200MHz | PTH | Both | -55 to +125°C | 8 | Yes |
| SP | 10.7MHz to 200MHz | SMD | Monolithic | -55 to +125°C | 8 | Yes |
