DATEL ADC-HZ12BGC傳統模數轉換器

發布時間：2025-05-29 08:57:37 瀏覽：867

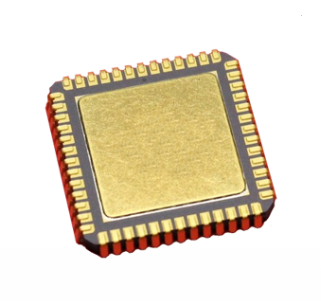

　　DATEL ADC-HZ12BGC，12 Bit, 8μSec & 20μSec Analog to Digital (A/D) Converter with Programable Input. ±2.5V, ±5V, 0 to +5V, 0 to +10V Input ranges, 0°C to +70°C temperature range.

DATEL ADC-HZ12BGC傳統模數轉換器

　　Resolution：12 Bit

　　Number of Channels：1

　　Sampling Rate：0.125 MHz

　　Power Consumption：1.1 W

　　Differential Non-Linearity Error/Other：0.75 LSB

　　Integral Non-Linearity Error/Other：0.5 LSB

　　Input Range 1st (min)：0 V

　　Input Range 1st (max)：5 V

　　Input Range 2nd (min)：0 V

　　Input Range 2nd (max)：10 V

　　Input Range 3rd (min)：-2.5 V

　　Input Range 3rd (max)：2.5 V

　　Input Range 4th (min)：-5 V

　　Input Range 4th (max)：5 V

　　Input Range 5th (min)：-10 V

　　Input Range 5th (max)：10 V

　　Required Supply Voltage 1st：5 V

　　Required Supply Voltage 3rd：15 V

　　Required Supply Voltage 4th：-15 V

　　Operating Temp. Range (min)：0 oC

　　Operating Temp. Range (max)：+70 oC

　　RoHS：No

　　型號參數信息

Part Number	Resolution	Sampling	Power	Operating Temp.	Operating Temp.	RoHS
Part Number	Resolution	Rate	Consumption	Range(min)	Range(max)	RoHS
ADC-HZ/883	12 Bit	0.125 MHz	1.1W	-55℃	+125℃	No
ADC-HZ12BGC	12 Bit	0.125 MHz	1.1W	0℃	+70℃	No
ADC-HZ12BGC-C	12 Bit	0.125 MHz	1.1W	0℃	+70℃	Yes
ADC-HZ12BMC	12 Bit	0.125 MHz	1.1W	0℃	+70℃	No
ADC-HZ12BMC-C	12 Bit	0.125 MHz	1.1W	0℃	+70℃	Yes
ADC-HZ12BMM	12 Bit	0.125 MHz	1.1W	-55℃	+125℃	No
ADC-HZ12BMM-C	12 Bit	0.125 MHz	1.1W	-55℃	+125℃	Yes
ADC-HZ12BMM-QL	12 Bit	0.125 MHz	1.1W	-55℃	+125℃	No
ADC-HZ12BMM-QL-C	12 Bit	0.125 MHz	1.687 W	-55℃	+125℃	Yes

深圳市立維創展科技有限公司，優勢提供DATEL產品渠道，歡迎咨詢。
